STAS multirail

In stock

STAS multirail is a globally patented picture hanging system equipped with integrated power supply wires. Lighting fixtures can be clicked into the rail at any spot to illuminate your wall decorations.

Please follow these 4 easy steps to order a complete hanging system:
1. One 45 W power adapter will supply power to a maximum of 17.5 Yards of rail (8 segments) and to a maximum of 10 LED lamps (4 W).
2. Indicate the number of rail segments 78.74 inch you wish to order. Please respect a maximum of 8 segments per adapter. Installation kit included.
3. Decide on the type and number of lighting fixtures you wish. 4 W powerLED lamp is included.
4. Finally, choose hooks and cords to complete the system.

Grouped product items
Product Name Qty
STAS multirail power supply 45 W STAS multirail power supply 45 W
$45.04
STAS multirail (200cm/~78.75 STAS multirail (200cm/~78.75") + installation kit
As low as $78.17

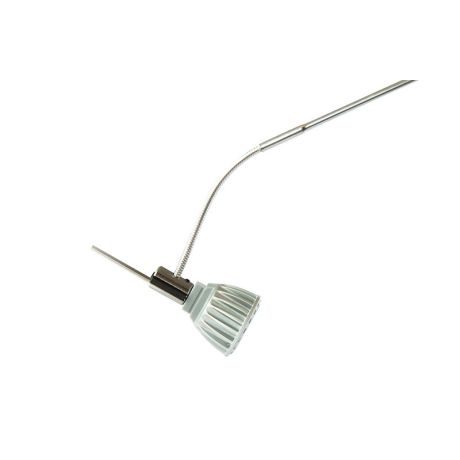

STAS light fixture sirius 19.68 inches (50 cm) + powerLED 4 watt STAS light fixture sirius 19.68 inches (50 cm) + powerLED 4 watt
$80.62
STAS light fixture signo 27.56 inches (70 cm) + powerLED 4 watt STAS light fixture signo 27.56 inches (70 cm) + powerLED 4 watt
$88.02
Total selected:

STAS multirail adds elegance, glamour and sophistication to your space and let your works of art take centre stage.

STAS multirail is a globally patented picture hanging system equipped with integrated 12 V power supply wires (low voltage). Lighting fixtures with LED lamps can be clicked into the rail at any spot to illuminate your wall decorations.

A STAS multirail picture hanging system consists of:
1. Power adapter: supplies electricity to your multirail system. One 45 W adapter will supply power to a maximum of 17.5 Yards of rail (16 meter / 8 segments), and to a maximum of 10 LED lamps (4 W).
STAS multirail 2. Rail: indicate the number of rail segments 78.74 inch (200 cm) you wish to order. Please respect a maximum of 8 segments per adapter. The included installation kit contains all necessary plugs, screws and rail connectors to correctly install the rail.
3. Lamps/fixtures: decide on the type and number of lighting fixtures you wish to install. The 4 W powerLED lamp is included. The output is the equivalent of a regular 20W lamp.
4. Hooks and cords: finally, choose STAS hooks and cords to complete the system and hang your art.

Would you like to install more than 8 segments of rail and / or more than 10 LED lamps? Please use a second adapter.

CAUTION: if you use multiple adapters, make absolutely sure you create independent circuits. In other words: two adapters cannot be connected! So, NEVER link two segments of rails that are each connected to a different adapter! You can only connect rail segments that share the same adapter.

Top benefits of the STAS multirail:

  • The STAS multirail is a thick-walled and massively strong, yet elegant rail, equipped with integrated 12 V power supply wires (low voltage)
  • STAS lighting fixtures can be plugged in at any point of the rail
  • LED lighting is energy efficient, has a long lifespan and produces no infrared radiation; safe for your artwork
  • The rail is paintable in a colour to your taste and easy to cut to size using a hacksaw
  • The STAS multirail supports multiple cords and multiple hooks per cord up to 99.21 lbs (45 kg)/m¹ of picture rail

Specifications:

  • Mounting: wall mounted system suitable for most wall types.
  • Power: 12 V system (low voltage).
  • Dimmable: current adapters are not dimmable.
  • Maximum load: 99.21 lbs (45 kg) per meter.
  • Rail material: aluminium rail.
  • Rail dimensions: 0.43 x 1.10 inch (11 x 28 mm).
  • Rail length: 78.74 inch (200 cm) per rail segment (a maximum of 8 segments per power adapter).
  • Rail colour: white/natural aluminum

Download:

STAS multirail manual | Power supply manual | Architect drawing | Product info | Product info fixtures and lamps
